Product Description

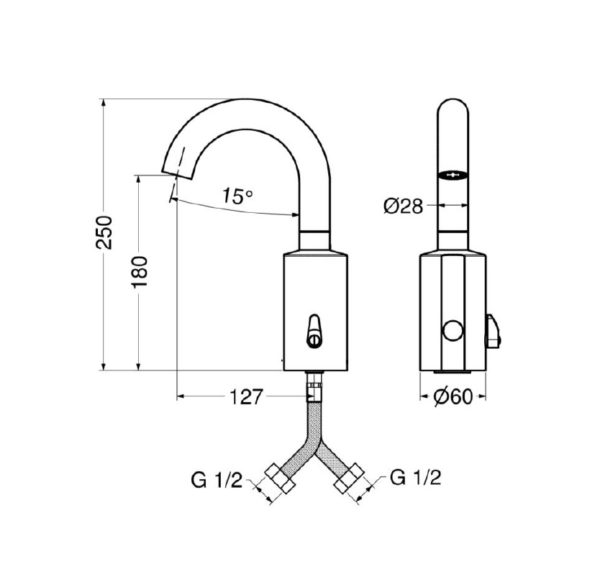

Electronic Infrared Detection Basin Mixer, applications and advantages.
Electronic mixing valves with fixed spouts are fitted to domestic hot water installations (sinks) and allow action on a desired temperature.
Depending on the model, the faucet will be battery operated and will be equipped with an infrared sensor.
- Chromed brass body
- Chromed brass fixed spout
- Bi-stable solenoid valve 6 V (internal)
- Infra-red sensor
- 6 V CRP2 lithium battery (internal)
- Stainless steel braided 1/2” flexible hoses and check valves
- Flow rate 6 l/min
- Operating pressure : Min 1 – max 8 bar
- Water inlet temperature : 5 – 70 °C
Power supply : Lithium battery 6 V (included)
Additional information
| Models | BS02504, BS02504/R |
|---|---|
| Product provider | BESTIDRAL |
| Main body | Chromed brass body |
| Activation | Infra-red sensor with presence detection function |
| Power supply | Lithium battery 6 V |
| Battery life cycles | 220.000 cycles |
| Flow rate | 6 l/min |
| Operating pressure | Min 1 – max 8 bar |
| Water inlet temperature | 5 – 70 °C |
| Self-opening | Every 24 hours since the last activation |
| Vandal proof safety | Self-closing after 60 seconds of continuous flow |
| Low battery safety | Low battery led indicator: in case of exhausted battery the mixer is kept closed |
| OTHER VERSION | BS02505/R : Main powered 230 V |
| Usage / Application | Communities Hygiene |
