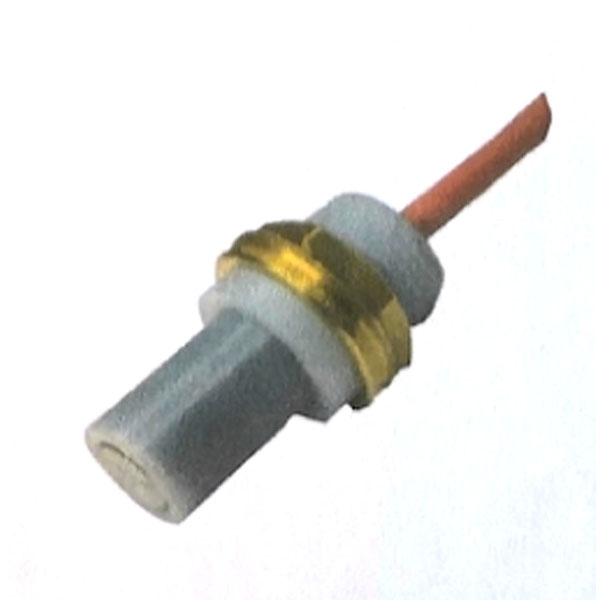

Bimetallic thermostat, applications and advantages.
The Vigitherme is a bimetallic thermostat that is used in industry to limit the temperature of equipment by stopping machines if they overheat or by triggering a fan to cool the installations.
- The M16-FRM produces a signal (closing a circuit) when the selected temperature increases, up to 180 ° C. The sensor should be attached close to the point of risk (on average 10 to 15 cm and perpendicular), then giving the best chance of obtaining rapid action (10 to 30 sec).
- The Vigitherme M16 is quite simply efficient, reliable, easy to install and economical.
Additional information
| Temperature range | -40° à +180° |
|---|---|
| Current rating | 10 mA at 6 A |
| Voltage rating | 250 V |
| Response time | 10 at 30 sec |
| Types of contacts | opening – closing |
| Composition of contacts | solid silver |
| Voltage proof between terminations and ground | 4 000 V |
| Contact resistance | 10 m Ohm |
| Connection | terminal for 2.8 mm clips – can also be soldered |
| Maximum operating Temperature | + 200° |
| Waterproof | IP68 |
| Cable | silicon, without halogenous, according to standards ED 60332-1 and IEC 60331-21 |
| Length of the cable | on request |
| Approvals | NFC 93450 and UL 873 |
| Product provider | BESTHEITO |

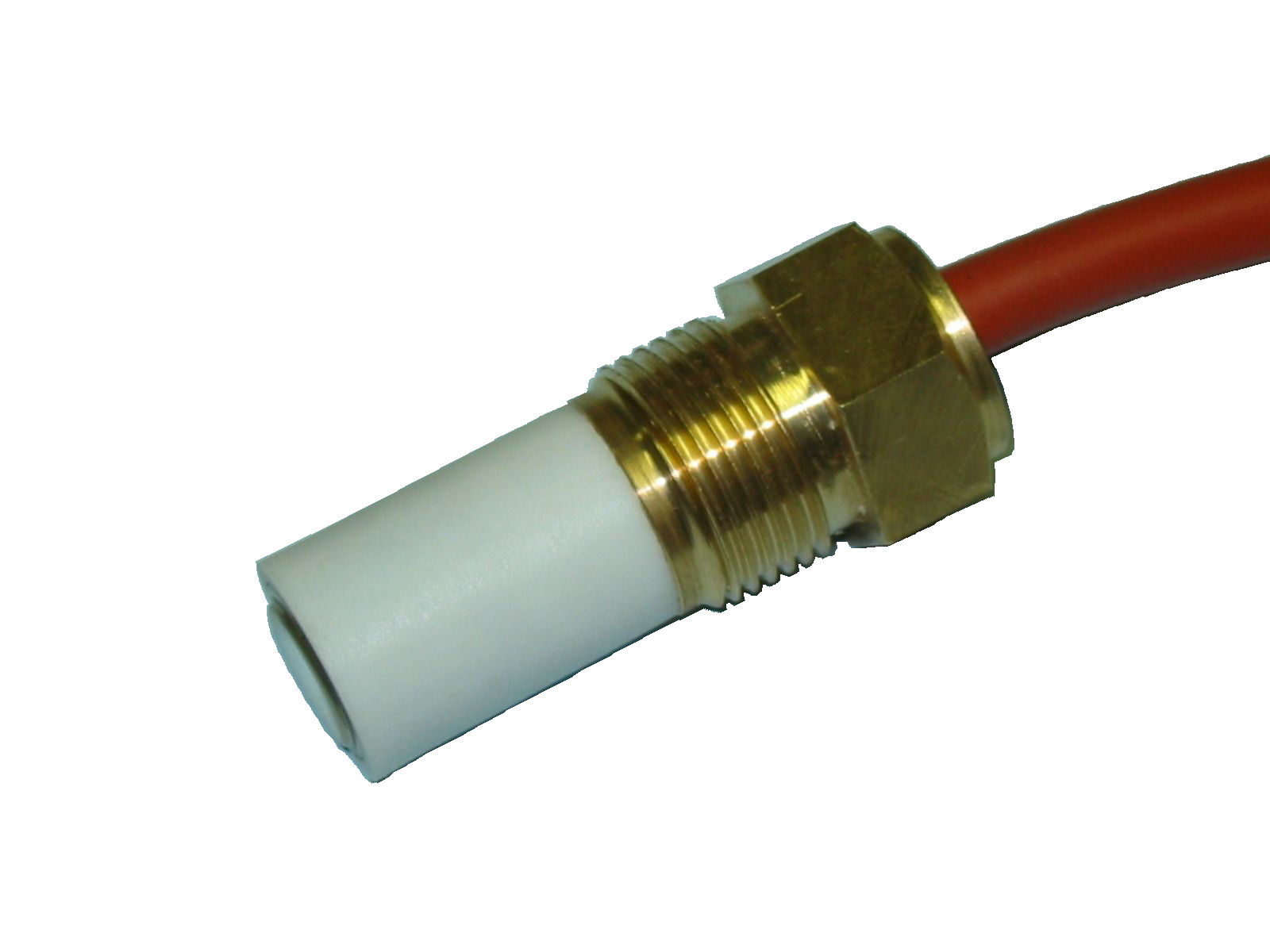

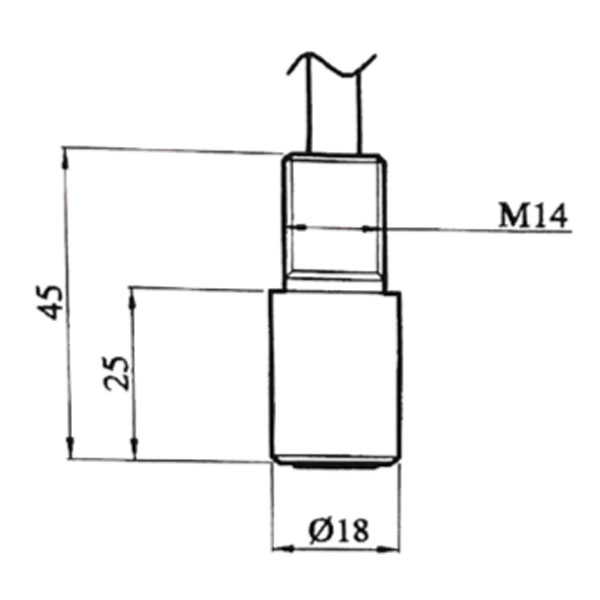

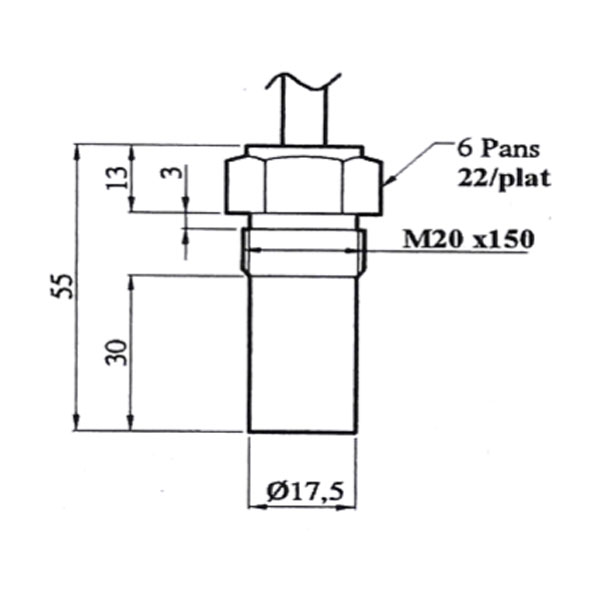

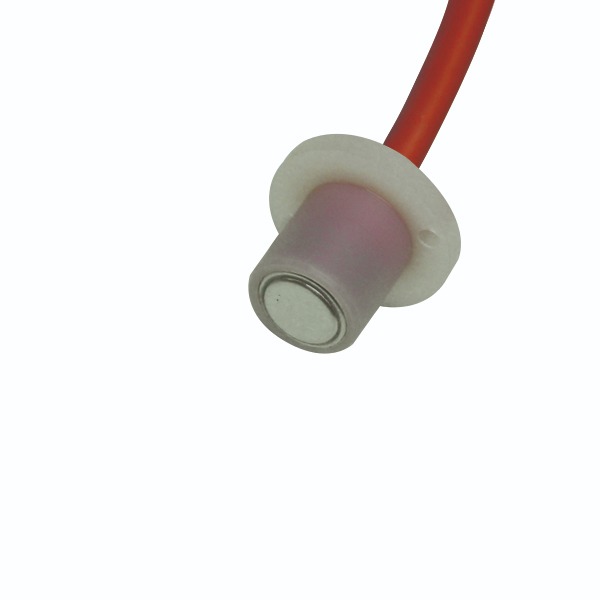

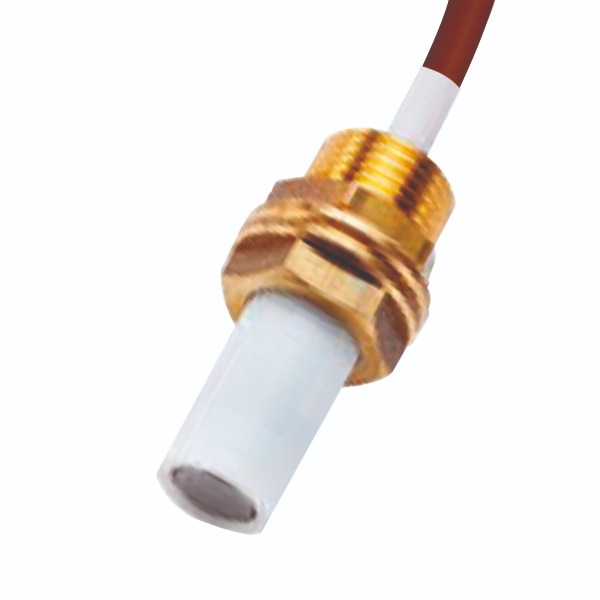

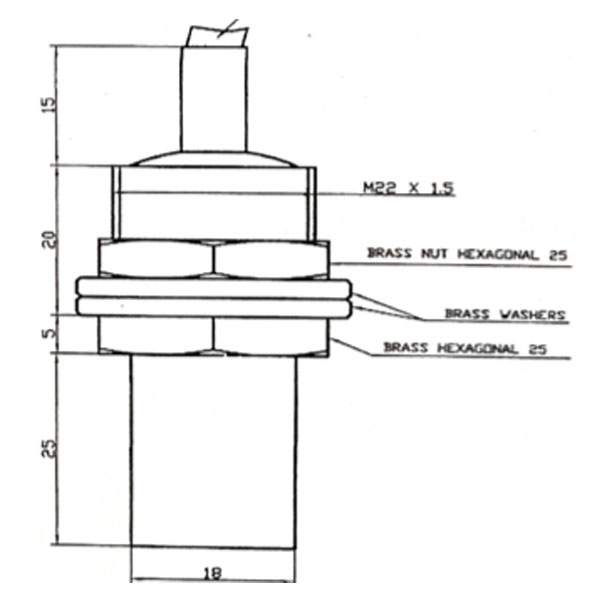

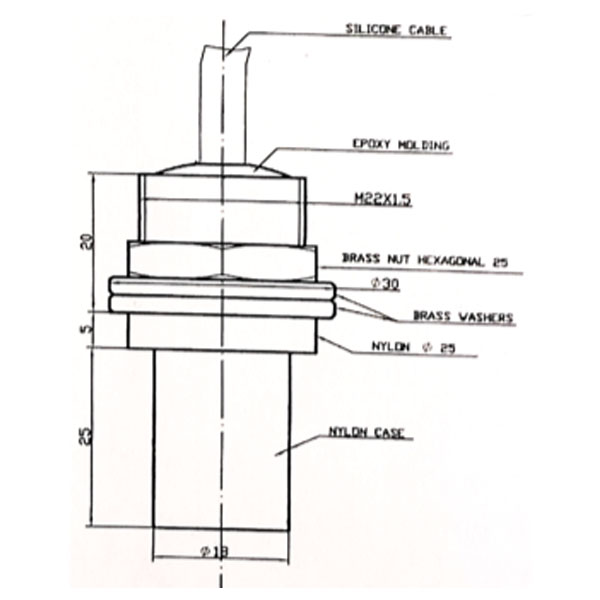

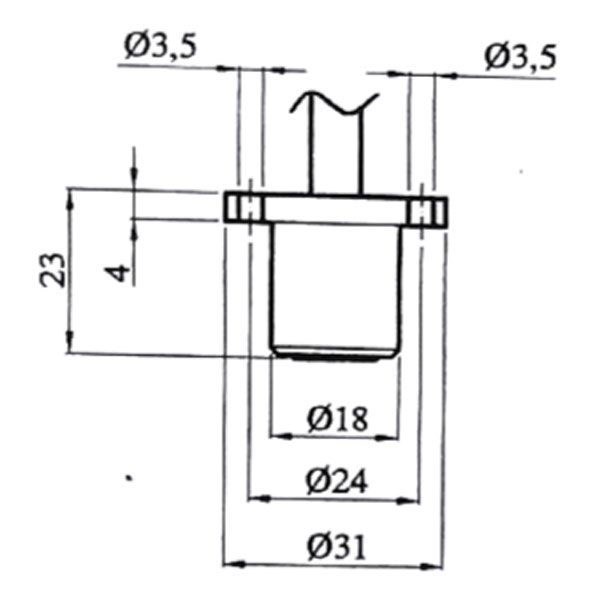

| Models | M16-FRM-A2, M16-FRM-A2/M, M16-FRM-A7, M16-FRM-A3, M16-FRM-A5 |
| Usage / Application | Detection / Instrumentation |
