Showing 1–12 of 35 results
Air & Gas diaphragm vacuum pumps, applications and advantages

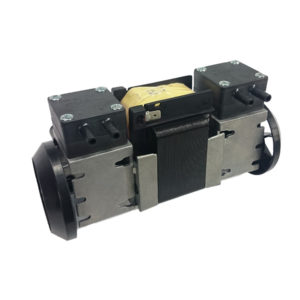

ELECTRICAL DATA, BCHX2 8900 :
- Rated Voltage 230V 50Hz ou 120V 60Hz
- 2 models: in parallel or in series
- IP protection : IP00
- Insulation class : Class B
- Motor type : Shaded pole
STANDARD HEAD CONFIGURATION :
- Head Pump : PPS
- Diaphragm : FPM
- Valves : FPM
- O-Rings : SILICONE
Applications :
- Sampling
- Pressurization
Air & Gas diaphragm vacuum pumps, applications and advantages
ELECTRICAL DATA, BSHX18900 :
- Rated voltage 230V 50Hz or 120V 60Hz
- Have an integrated filter 400 μm
- IP protection : IP 00
- Insulation class : Therminal switch 120°C
- Motor type : Shaded pole
STANDARD HEAD CONFIGURATION
- Head Pump : PPS
- Diaphragm : FPM
- Valves : FPM
- O-Rings : SILICONE
Applications :
- Sampling
- Pressurization
Air & Gas diaphragm vacuum pumps, applications and advantages
ELECTRICAL DATA, BCHX2 6900 :
- Rated Voltage 12V dc or 24V dc
- 2 models: in parallel or in series
- IP protection : IP20
- Insulation class : Class E
- Motor type : Direct Current
STANDARD HEAD CONFIGURATION :
- Head Pump : PPS
- Diaphragm : FPM
- Valves : FPM
- O-Rings : SILICONE
Applications :
- Sampling
- Transfer
- Dosage
- Pressurization
Air & Gas diaphragm vacuum pumps, applications and advantages
ELECTRICAL DATA, BSHX16900 :
- Rated voltage 230V 50Hz or 120V 60Hz
- Have an integrated filter 400 μm
- IP protection : IP20
- Insulation class : Class E
- Motor type : Direct current
STANDARD HEAD CONFIGURATION :
- Head Pump : PPS
- Diaphragm : FPM
- Valves : FPM
- O-Rings : SILICONE
Applications :
- Sampling
- Transfer
Bimetallic thermostat, applications and advantages.
The Vigitherme is a bimetallic thermostat that is used in industry to limit the temperature of equipment by stopping machines if they overheat or by triggering a fan to cool the installations.- The M16-FRM produces a signal (closing a circuit) when the selected temperature increases, up to 180 ° C. The sensor should be attached close to the point of risk (on average 10 to 15 cm and perpendicular), then giving the best chance of obtaining rapid action (10 to 30 sec).
- The Vigitherme M16 is quite simply efficient, reliable, easy to install and economical.
Blowers and exhausters advantages
The air flow amplifier uses a small amount of compressed air to drive more, following the COANDA effect. .Applications
• Booster • Pneumatic operation • Vacuum conveying of powders and granular
Dosing Venturis, applications and advantages
Under the effect of the water pressure, the Venturi dispenser drives and dilutes one or two liquid products intended to clean hands or equipment contaminated by their use.Venturi dosing kits for disinfection and hygiene machines are delivered with non-return valve, EPDM O-ring, hose, strainer and set of nozzles.
.
Use of the venturi dispenser
• Dishwasher tunnels • Hand disinfection • Boot washer
Electric Vacuum Switch, applications and advantages
The PSE100E series vacuum switch with electric output allows the vacuum level in the system to be checked by means of a patented system.
.
Advantages :
• It is adapted to all electrical automated systems • The choice between the N.O. or N.C. function is made during wiring.
Electric Vacuum Switch, applications and advantages
The PSE 100 P series vacuum switch with pneumatic output allows the vacuum level in the system to be checked by means of a patented system.
.
This vacuum switch exists in two versions :
• NO version recommended for the «air saving» function on a venturi. • NC version for the « safety » function (object detected, ect.) and « SFC signal ».
Electronic Infrared Detection Basin Mixer with fixed spouts, applications and advantages.
Electronic Infrared Detection Basin Mixer mixing valves with fixed spouts are fitted to domestic hot water installations (sinks) and allow action on a desired temperature. Depending on the model, the faucet will be battery operated and will be equipped with an infrared sensor.Chromed brass body
Chromed brass fixed spout
Bi-stable solenoid valve 6 V (internal)
Infra-red sensor
6 V CRP2 lithium battery (internal)
Stainless steel braided 1/2” flexible hoses and check valves
Flow rate 6 l/min
Operating pressure : Min 1 - max 8 bar
Water inlet temperature : 5 - 70 °C
Power supply : Lithium battery 6 V (included)
Electronic Infrared Detection Basin Mixer with fixed spouts, applications and advantages.
Electronic Infrared Detection Basin Mixer with fixed spouts are fitted to domestic hot water installations (sinks) and allow action on a desired temperature. Depending on the model, the faucet will be battery operated and will be equipped with an infrared sensor.- Chromed brass body
- Chromed brass fixed spout
- Bi-stable solenoid valve 6 V (internal)
- Infra-red sensor
- 6 V CRP2 lithium battery (internal)
- Stainless steel braided 1/2” flexible hoses and check valves
- Flow rate 6 l/min
- Operating pressure : Min 1 - max 8 bar
- Water inlet temperature : 5 - 70 °C
Electronic Infrared Detection Basin Mixer, applications and advantages.
Electronic mixing valves with fixed spouts are fitted to domestic hot water installations (sinks) and allow action on a desired temperature. Depending on the model, the faucet will be battery operated and will be equipped with an infrared sensor.- Chromed brass body
- Chromed brass fixed spout
- Bi-stable solenoid valve 6 V (internal)
- Infra-red sensor
- 6 V CRP2 lithium battery (internal)
- Stainless steel braided 1/2” flexible hoses and check valves
- Flow rate 6 l/min
- Operating pressure : Min 1 - max 8 bar
- Water inlet temperature : 5 - 70 °C
